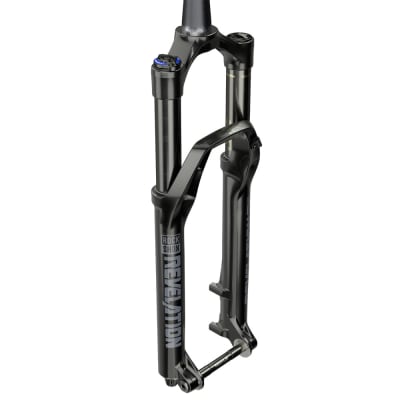

Horquilla Revelation Rc 27.5" 150mm

- Model designator (SF) RC
- Wheel size 27.5"
- Travel (mm )150mm
- Damper Type Motion Control
- Fork offset 46mm (27.5")
- Maxle included Maxle Stealth
- Color (FS )Gloss Black
- E-MTB Decal No
- Steerer 1.5" Tapered
- Axle15x110mm BOOST™
- Axle to Crown (mm)542
- Brake type (FD) Disc
- Crown Material Forged, hollow aluminum
- Upper crown type n/a
- Lower leg type Magnesium
- Upper Tube Finish Fast Black
- Upper tube type 35mm tapered wall aluminum
- Damper adjust Crown
- Damping adjustments Extl rebnd, low speed comp
- Volume reducer 1/4 Tokens
- Spring DebonAir
- Spring rate n/a
- Max Tire Diameter (mm) 732
- Max Tire Width (mm)81
- Maximum Rotor Size 220mm
- Minimum Rotor Size 180mm
- Fender Compatibility n/a
- Crown OD (mm) 58
- Part Weight (g) 1920
